DoFP Polarimetric Resolution Benchmark (DoFP-PRB)
The DoFP Polarimetric Resolution Benchmark (DoFP-PRB) is an open research benchmark for the characterization and comparison of division-of-focal-plane (DoFP) imaging polarimeters, analyzer modulation architectures, and polarimetric demosaicing algorithms.

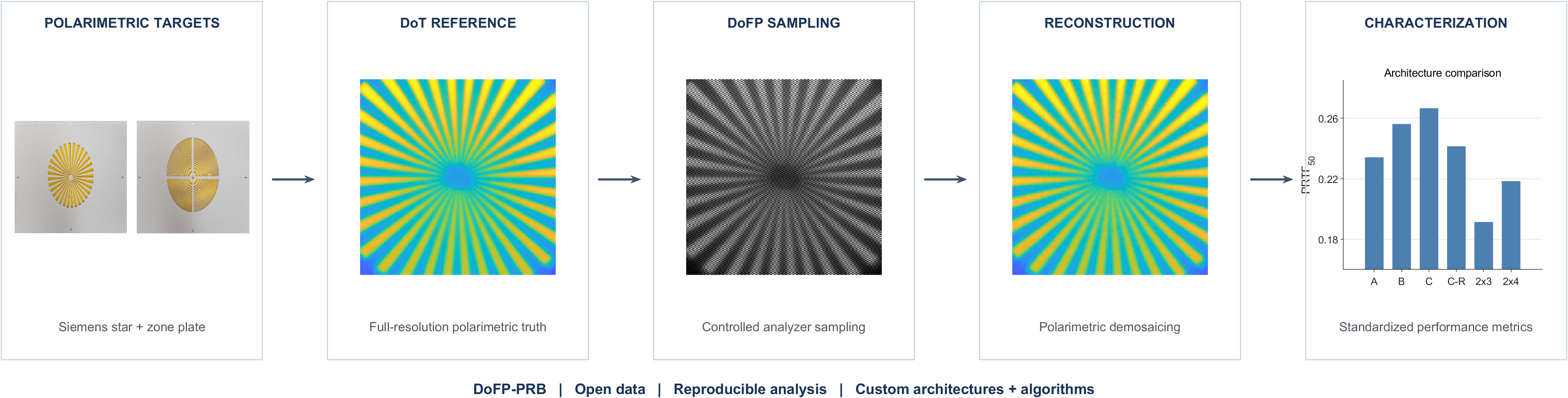

DoFP-PRB combines full-resolution polarimetric reference measurements with controlled synthetic DoFP sampling, standardized reconstruction and performance metrics, and measurements from physical DoFP sensors. The benchmark uses polarimetrically structured Siemens-star and zone-plate targets to characterize spatial-polarimetric resolution, aliasing, Stokes-channel isolation, and reconstruction fidelity under a common evaluation framework.
Benchmark releases include polarimetric reference and experimental datasets, MATLAB analysis software, target-design files, and example workflows. The framework supports both the modulation architectures evaluated in the associated publications and user-defined analyzer patterns and demosaicing algorithms.
DoFP-PRB v1.0 is the initial LWIR benchmark release. It provides full-resolution division-of-time (DoT) polarimetric reference measurements, measurements from three physical LWIR DoFP configurations, six analyzer modulation architectures, a common Fourier-domain reconstruction baseline, and standardized spatial-polarimetric characterization tools.
Versioned releases are retained in this repository to support reproducibility of published results and continued expansion of the benchmark.
Citation
For use of DoFP-PRB in published work, please cite the benchmark repository and the associated publication:
- DoFP Polarimetric Resolution Benchmark (DoFP-PRB), University of Dayton Applied Sensing Lab. DOI: https://doi.org/XXXXXXXX.
- B. M. Ratliff, J. S. Tyo, A. Smith, and D. A. LeMaster, "A Polarimetric Resolution Benchmark for Division-of-Focal-Plane Polarimeters: Spatial-Polarimetric Performance, Modulation Architecture, and Experimental Validation." [Journal citation to be added upon publication.]
Publications using the benchmark should identify the specific DoFP-PRB release used in the analysis (for example, DoFP-PRB v1.0). Previous releases are retained in this repository to preserve reproducibility of published results.
Related Publications
The polarimetric resolution targets and experimental methodology underlying DoFP-PRB are described in:
- B. M. Ratliff, D. A. LeMaster, A. M. Smith, and J. S. Tyo, "Polarimetric resolution targets for imaging polarimeter characterization tasks," Proc. SPIE 14041, Polarization: Measurement, Analysis, and Remote Sensing XVII, 140410F (11 June 2026). https://doi.org/10.1117/12.3094230
Additional publications using or extending DoFP-PRB will be added as they become available.
About the Applied Sensing Lab
The Applied Sensing Lab (ASL) at the University of Dayton develops sensing systems, experimental capabilities, datasets, and analysis methods for electro-optical and infrared remote sensing. Research areas include imaging polarimetry, hyperspectral imaging, multimodal sensing, radiometric characterization, image processing, and airborne sensing.
Additional datasets, software, and research products developed by the Applied Sensing Lab are available through the Applied Sensing Lab eCommons collection.
